Plate rolling

Profile and flatness control for higher productivity

Installed in plate mills, CVC® plus technology ensures effective profile and flatness control over a wide setting range, independent of the rolling forces.

You benefit from:

  • Increased productivity due to reduced number of passes
  • Efficient profile and flatness control
  • Thinner final thicknesses and wider final width
  • Better material through-forming
  • Easier roll handling due to minimal number of work rolls in circulation.

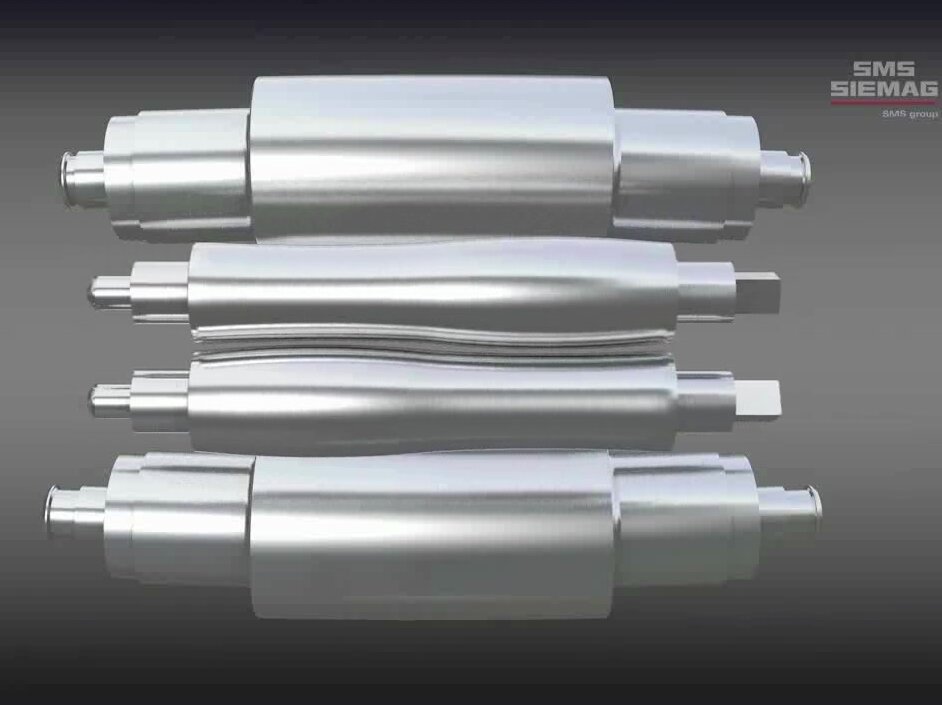

What makes CVC® plus technology so effective is the combination of work roll bending, axial shifting of the work rolls with special CVC® plus grinding, and the PFC® (profile and flatness control) technological process model. PFC® adjusts the shifting position and bending force from pass to pass, taking into account all rolling parameters.
