Plug & Work

3D real-time simulation of technology prior to installation

The entire system is completely installed, tested and pre-optimized in the test fields long before actual site work begins.

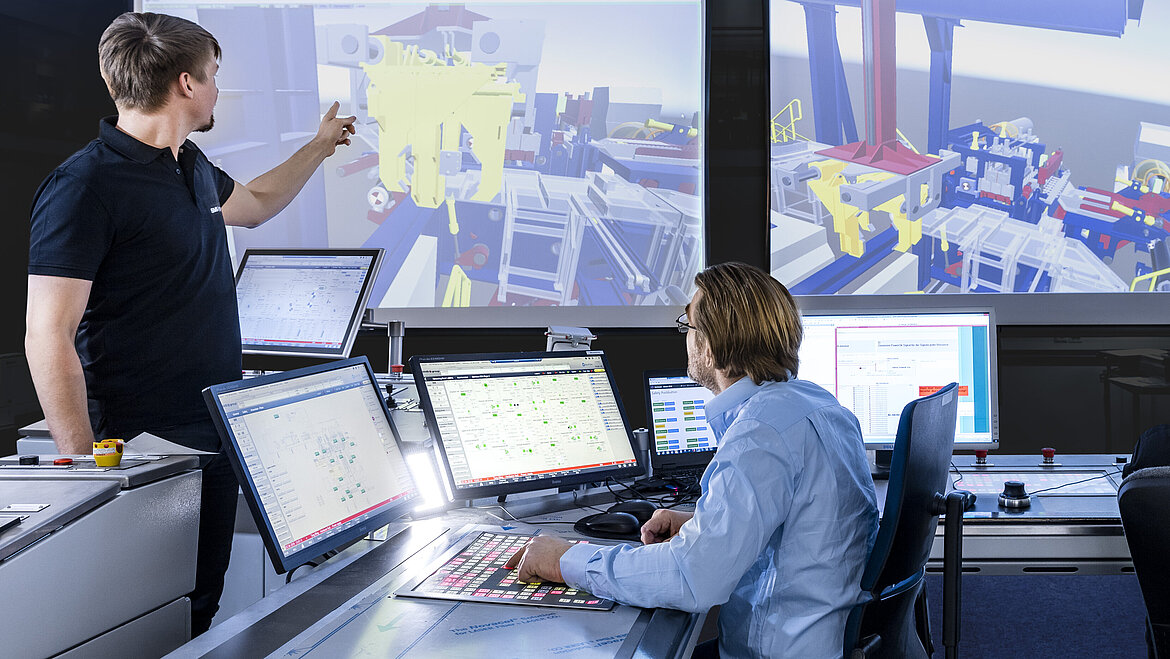

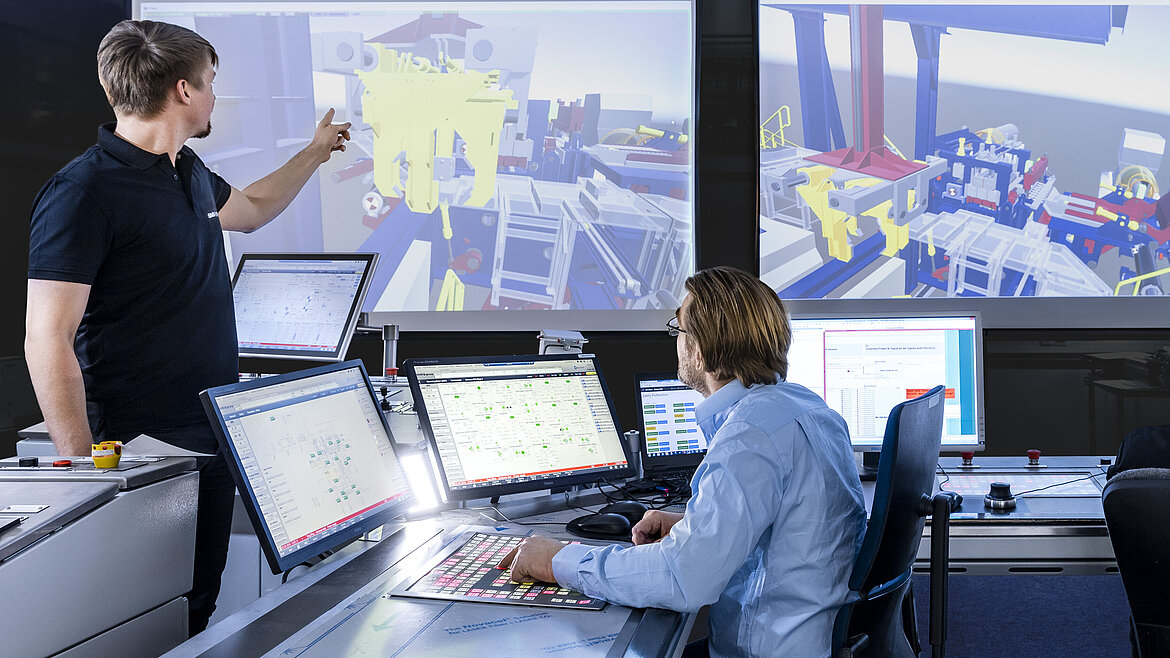

For this purpose, a digital twin is created of the customized plant. This twin is connected to the automation system by means of a realistic 3D plant simulation in real time, then tested and pre-optimized.This so-called Plug & Work test may also be used to train the operating staff at the original control desks. This way, the commissioning time can be reduced by up to 30 percent.

SMS group has developed this concept which ensures significant savings.

SMSgroup Image SMSgroup Image SMSgroup Image SMSgroup Image
SMSgroup Image SMSgroup Image SMSgroup Image SMSgroup Image
SMSgroup Image SMSgroup Image SMSgroup Image SMSgroup Image

Process and production simulation

I/O-Simulation

  • Established fieldbus types can be served
  • Automatic generation of interfaces from Level 1  engineering data base

Production simulation

  • Production simulation
  • Visualization of the plant
  • Reproduction of logistic processes
  • Use of synergies: generation of visualization from engineering data

Technological simulation

  • Reproduction of kinematic and dynamic behavior of plant elements in mathematical physical models
  • Consideration of technological features
  • Simulation in real-time
