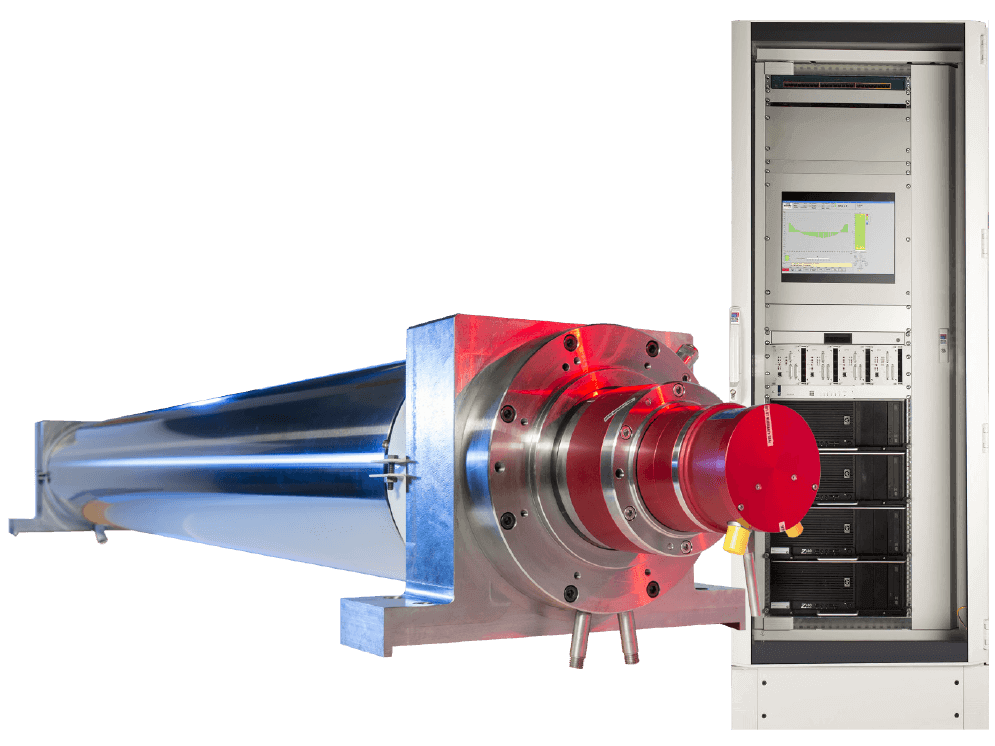

X-Shape Flatness Measurement and Control

Challenges

• Reliable and precise flatness measurement and control

Solution

• Stand-alone measuring system with closed roll surface
• Flatness control perfectly tailored to the process requirements

Technical advantages

• Mark-free measurement due to closed roll surface (hardended / coated)
• Up to 3,000 mm measuring width, max. 96 sensors with variable pattern
• Reliable and wear-free signal transmission
• Re-calibration not required
• Model-based signal evaluation: one system for all products
• Robust flatness control, for all plant types and available control elements

Quality

• Optimized strip flatness
• Minimized off-flatness lengths

Productivity

• Increased rolling speed
