Strip processing

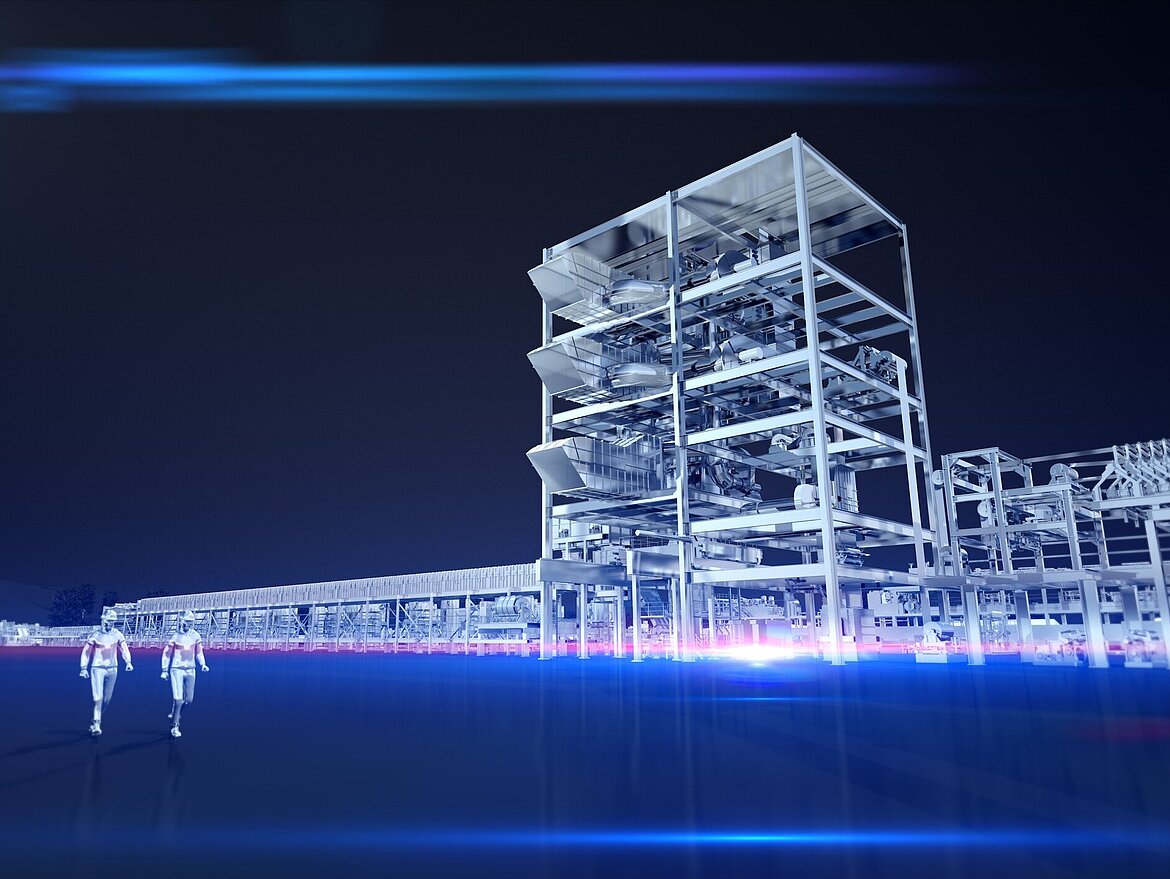

For cold and hot strip galvanizing, the plant will be equipped with a continuous galvanizing line including a horizontal Drever furnace heated by a direct-fired and a radiant-tube zone. The line will be prepared for the later installation of an ultra-fast gas cooling section to allow for future production of high-strength steel. The scope of supply also includes a DUMA-BANDZINK air knife system that will homogeneously and precisely set the zinc layer thickness to ensure high surface quality. A change system with two zinc pots will permit the strips to be coated with a conventional zinc layer or an aluminum-zinc alloy. For post-treatment, the line will be equipped with a four-high skin-pass mill stand, a tension leveler and two horizontal shuttle-roll coaters, as well as with an oiling machine in the exit section. The galvanizing line will be able to process strips with a thickness of up to 4.0 mm (0.16") and a width up to 1,930 mm (76") . Its annual capacity will be 500,000 tons (0.55 million short tons).
