THERMAL COATING SOLUTIONS
USING WIRE ARC SPRAYINGThe right corrosion protection is the alpha and omega when it comes to durability and resistance of the material used. With wire arc spraying solutions from SMS group you benefit from a process characterized by high application rates and low energy consumption.
Meet us at ITSC
From May 4 to 6, 2022, the ITSC (International Thermal Spray Conference and Exposition) will take place in Vienna, Austria. Visit us at our booth #140 | hall X2 for a personal exchange of ideas and information with our experts.
This trade fair will be the platform for presenting our new technologies and services to support the thermal coating industry. We will also showcase our ideas of lifetime partnerships that include our worldwide Coating Competence Center.
Dr. Thomas Hohnen, Head of Sales Thermal Coating Plants, SMS group, will provide insights to questions such as "Why does the corrosion protection currently used for linepipes fail to work in some cases? And how can thermal coating improve this?" during his lecture on 'Improved environmental safety of pipelines using high efficient wire arc spraying'. Meet him on May 4, 2022 at 10.50 a.m. in hall G2.
Process
Wire arc spraying represents a well established thermal spray technology. In the process two metallic wires (feedstock material) are fed into a focus point, where an electric arc melts the wire tips. Droplets are formed and are accelerated into the direction of the substrate by secondary atomization with a high-kinetic gas jet. The atomized particles are form a fine-structured homogenous coating on the substrate, with excellent mechanical properties.
Applications
Your Application
SMS group provides individual solutions to meet your special requirements: It is possible to process almost all metallic materials which are in wire form. SMS PERFECT spray® technology feature the option of separately controlled wire feeds whereby different cathode- and anode-side materials can be combined to produce alloys and pseudo-alloys in the process – for example a combination of steel and nickel or aluminum and copper.
Main Products
SMS group brings together two promising technologies: wire arc spraying and an all-digital current/voltage source developed in-house. Resulting in the thermal arc spray system PERFECT spray® − consisting of 3 main components:

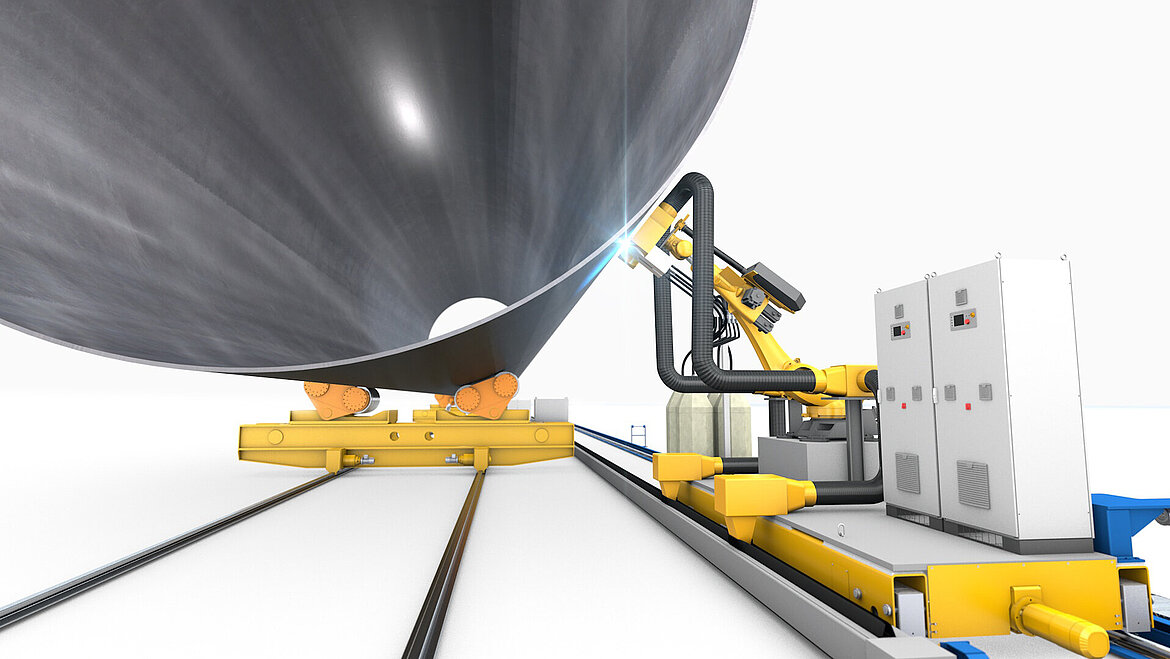

Entire plants and transportation systems
Whether entire plants or tailor-made transportation systems, SMS group offers complete and automated solutions for your individual project.
Materials
COATING WIRE MATERIAL
Almost all metal materials that can be supplied in wire form can be processed. Thanks to the option of separately controlled wire feed rates, users are also able to process different materials on the cathode and anode sides, allowing alloys or pseudo-alloys to be produced in the process (e.g. combination of steel and nickel, or aluminum and copper).
Metals
Materials | Applications |
| Aluminium | Corrosion and scale protection; Adhesive base (metallic interaction) |
| Nickel / Ni-Al-mixture | Adhesive base |
| Copper | Electrically conductive layers of non-conductors |
| Zinc | Corrosion protection |
| Molybdenum | Adhesive base (metallic interaction); |
Alloys
MATERIALS | APPLICATIONS |
| Steel / Cr- / CR. Ni-alloyed | Repair protection; wear protection; corrosion protection |
| Bronze alloys | Wear protection |
| Co-Hard alloys | Protection against cavitation, erosion and corrosion at higher temperatures |
| NiCrBsi-alloys | Self-flowing alloy, wear protection |
Oxide ceramics
Materials | Applications |
| Zr2O2 / Y2O2 | Turbine construction, space travel, engine construction |
| AI2O2 Cr2O2 AI2O2-TIO2 | Wear and temperature protection |
Materials | Applications |
| WC-Co | Tight, smooth and hard friction wear protection |
Reports & Articles
Events
Expert session (on demand)
Wire arc sprayingWhy is the thermal coating market no longer a niche market? Why are digital power sources the future of wire arc spraying? And what makes the SMS group PERFECT spray system so outstanding? – These are just a few questions we address in our webinar. Not yet registered? Take your chance and register today.
