Superb bar straightness

Whether you produce 2 mm wire or formats up to 250 mm – SMS group supplies the right straightening solution for all your non-ferrous products

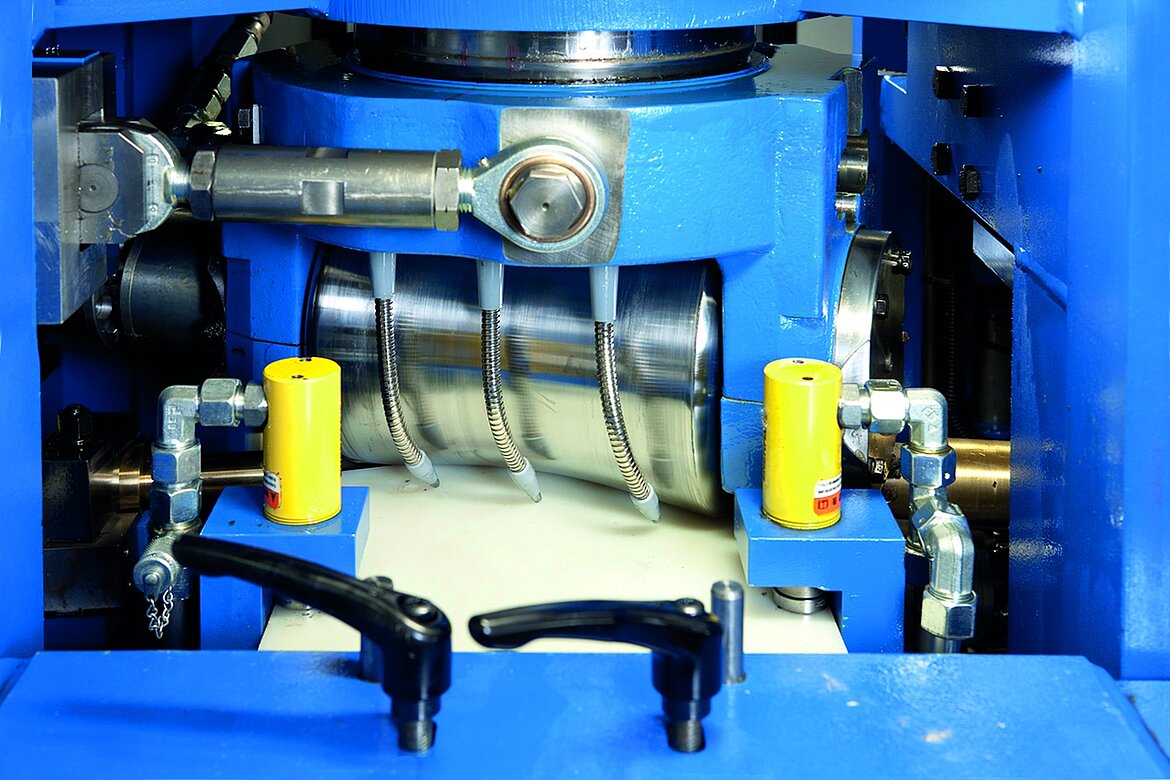

Our WRP B-series two-roll straightening and polishing machines are engineered for particularly high-tensile materials and tough specifications. Fully integrated here are motors or hydraulic systems that perform most of the adjusting and clamping operations. This allows the machines to generate the best possible straightening results over the full bar length, within a diameter range of between 2 and 250 mm. What's equally impressive is that these machines are so fast they achieve feed rates of up to 210 m per minute. This translates into high productivity. You also benefit from extras such as quick-change systems, engineered roll contours for special materials, and recipe control for quick set-up. All this goes to show that the WRP E-series is a money-saving solution for low to moderate-tensile-strength material and bar diameters of between 4 and 60 mm. Several machine parameters are set manually. You can integrate these systems into non-ferrous lines or use them as standalone units with suitable bar handling systems.

High quality for small diameters

Alternatively, you can opt for combined drawing lines with straightening and drawing machines featuring nozzle-type straighteners and polishing wheels. This is the ideal arrangement for small bar sizes. Our models are available in a diameter range of 2 to 30 mm and combine high straightness levels, surface quality, and impressive throughput speed.
