Wherever you look, seamless steel tubes are an integral part of modern life. Today, the oil and gas industry, the construction and mechanical engineering industries, and automotive manufacturers demand ever better tubes made of higher steel grades, with closer tolerances and new dimensions.

Ever since the Mannesmann brothers' radical invention in 1885, SMS group has continuously improved the seamless tube production process. That has put us one step ahead of current and future requirements of the pipe and tube market. Take for example our PQF® (Premium Quality Finishing) process and its innovative technology packages. This innovative power proves we offer you competitive solutions for seamless tubes.

Seamless tube plant process

The right solution for all process stages

Piercing, elongating, and finish-rolling - these are the key stages in seamless tube production. SMS group has the right machines for every stage, and covers the whole range of processes.

Seamless tube plant process slider image

Starting Material

Steel billets of various dimensions and grades, continuously cast or rolled

  • Billet preparation
  • Billet saws
  • Furnace technology
  • Billet centering
Seamless tube plant process slider image

Piercing

from the billet to the hollow

  • Cross-rolling mills (cone type and Barrel type piercing)
  • Billet descaling
  • 3-roll piercing mill
  • Hollow inside deoxidation
  • Cooling and quick-change systems for piercing tools
Seamless plant tube process slider image

Elongating / expanding

from the hollow to the shell

  • PQF® / MPM mill
  • CPE/TPE mill / Push bench technology
  • Assel mill
  • Plug mill
  • Hot pilger mill
  • Elongator
  • Rotary Expander
Seamless plant tube process slider image

Finish rolling

from the shell to the tube

  • Reheating furnace (gas fired/induction)
  • High pressure water descaling unit
  • Sizing mill
  • Stretch-reducing mill
  • FPS adjustable rolling stands
  • Tube layer saws
Seamless plant tube process slider image

Finishing line

From the rolling mill to the dispatch area

  • Groove dressing machines for PQF® catridges
  • Stretch-reducing and sizing mill stands
Seamless plant tube process slider image

Products

Seamless tubes of various dimensions

  • Diameters:
    21.3 mm to 720 mm
  • Wall thicknesses:
    2 mm to 120 mm

Technology

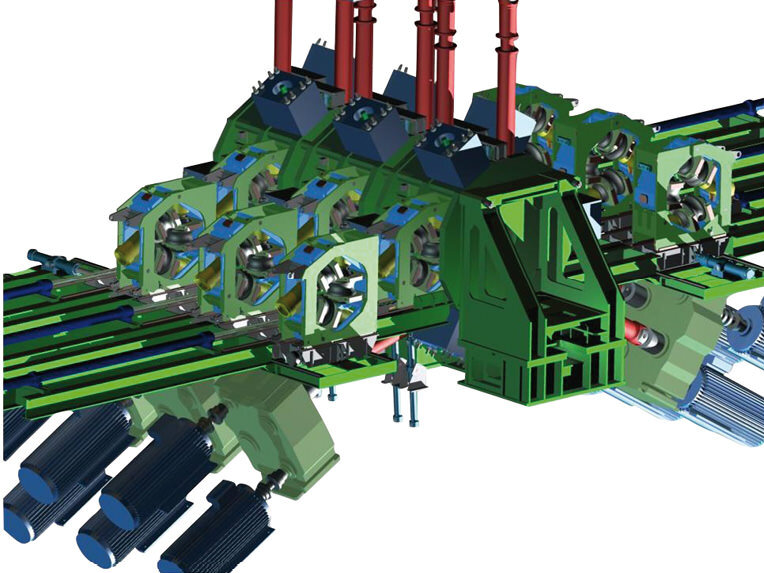

PQF® - PREMIUM QUALITY FINISHING

Advanced mandrel mill technology for premium quality finishing

Whether it's high-alloy steels or particularly thin-walled precision tubes - with our PQF® (Premium Quality Finishing) technology, you can produce even the highest-grade products efficiently and reliably. You also use less material to generate better output than with conventional solutions. That ensures tool cost plus energy savings due to the low reheating required during the rolling process.

Typical size ranges / deformation steps of PQF® mills
Plant dimension 7"9 5/8" / 10 3/4"16" / 20"
Billet Diameter [mm] 210 200 - 280210 - 360 / 450
Diameter range Finished tube [mm] 48,3 - 177,8 42,4 - 244,5  (273,1)177,8 - 406,4 / 508
Wall thickness [mm] 3,2 - 223,6 - 255,6 - 40
Production
capacity [tons / year]
> 200.000  > 300.000> 400.000

Your benefits from the PQF® process at a glance

  • You can roll higher-alloyed steel grades
  • Temperature distribution in the shell is more uniform after the
    elongation rolling process
  • Reduced "finning" at the shell end for lower crop end losses
  • Closer wall thickness tolerances
  • Higher tube quality
  • Lower manufacturing costs
SMSgroup Image SMSgroup Image

Technical highlights

SMSgroup Image

Furnace technology for seamless tube plants

Experienced specialists in tube rolling, re-heating, and heat treatment

Seamless tube plants technical highlights image

BCM - Billet centering machines

Optimized rolling process with centered piercing

Seamless tube plants technical highlights image

PQSC® Technology

Better plug material and less thermal load

Seamless tube plants technical highlights image

INCOAT®

Innovative scale protection in seamless tubes

Seamless tube plants technical highlights image

CALIVIEW®

An all-new measuring principle

Seamless tube plants technical highlights image

Lasus® measuring system

Precise measurements for high quality all round

Seamless tube plants technical highlights image

Carta® technology system

Computer-aided rolling technology - seamless integration, all-round innovation

Seamless tube plants technical highlights image

Groove dressing machine

Latest-generation roll dressing machines

Selected References



Electrical and automation systems

Integrating the latest technologies and automation processes

There is a huge demand for the automation of complete seamless tube lines and integrated individual machines, another SMS group specialty.
So, whatever you want, from individual sensors, through drive and control technology, right up to planning and implementation of computer-aided information and control systems: SMS group supplies complete solutions.

You name it - from project planning to system implementation, we devise customized solutions and apply cutting-edge technology to meet your specific requirements.

Included here are:

  • Condition monitoring
  • CARTA® manufacturing executing systems (MES)
  • Radio frequency identification (RFID) tool identification and tracking system
  • Pipe and material tracking
  • Wireless network (WLAN) design for complete industrial plants
  • Mobile panels for remote machine control
  • Quality assurance system (QAS)

Using plant simulations, we thoroughly test the capabilities and functionalities of complex industrial plants as early as the project planning and engineering stages. Then we apply the findings to perfect the structure and control strategies of our plants.

Electrics and automation systems image Electrics and automation systems image

Service

Emergency Support

Remote service

Remote access to the machine control system for fault analysis is possible only after authentication by the customer. Direct analysis and evaluation of the operating parameters are performed online by the SMS Service employees. They can easily identify defects and malfunctions and initiate measures for fault elimination. Remote access also allows the system software to be updated. Naturally, the installation of the necessary hardware and software for the remote access is already included in the remote service.

SMSgroup Image

Our services

  • Installation of software and hardware
  • Identification of faults, defects and malfunctions
  • System update and fault elimination per remote access
  • In case of plant failure competent assistance by experts

Your benefits

  • Shorter reaction times
  • Rapid identification of necessary maintenance and repair measures
  • Reduction of maintenance costs

Downloads

VALLOUREC & SUMITOMO TUBOS DO BRASIL: PQF® seamless tube plant
Download
KR CNC Groove Dressing Machine
Download
INCOAT®
Download
CaliView®
Download
PQSC® technology
Download
Lasus®
Download
Carta®
Download
PQF® technology
Download
Seamless Tube Plants
Download
