Environmental-friendly reheating of ingots, slabs, billets, blooms and beam blanks

Over 100 furnaces in twenty years confirm SMS group's leadership in environmental friendly reheating and heat treatment solutions. We continue on our pathway of innovation for delivering excellent performances to our customers for the years to come!

Our expertise covers

  • Furnaces ranging from 10 to 400 tons per hour capacity processing the most diverse semi-products
  • Best in the industry efficiency level, as low as 250 kcal/kg
  • Burners with the capability of firing with multiple fuels, from any kind of fossil, to iron-making off gases to hydrogen
  • SMS ZEROFlame flameless technology that ensures NOx lower than 40 ppm
  • The most advanced mathematical model of X-Pact® Prometheus

Furnace types

  • Pusher type furnace

    Affordable investment combined with robust design

    Main data

    Pusher furnaces are typically suitable for low-production mills for common steel grades, for example rebar mills. Top-fired pusher type furnaces combine the benefits of a sturdy construction and simplicity in design with low consumption. Top and bottom-fired pusher type furnaces are capable of high production rates. Pusher type furnaces are an inexpensive, yet sturdy and reliable, alternative to more sophisticated walking hearth furnaces or walking beam furnaces for the production of long and flat products.

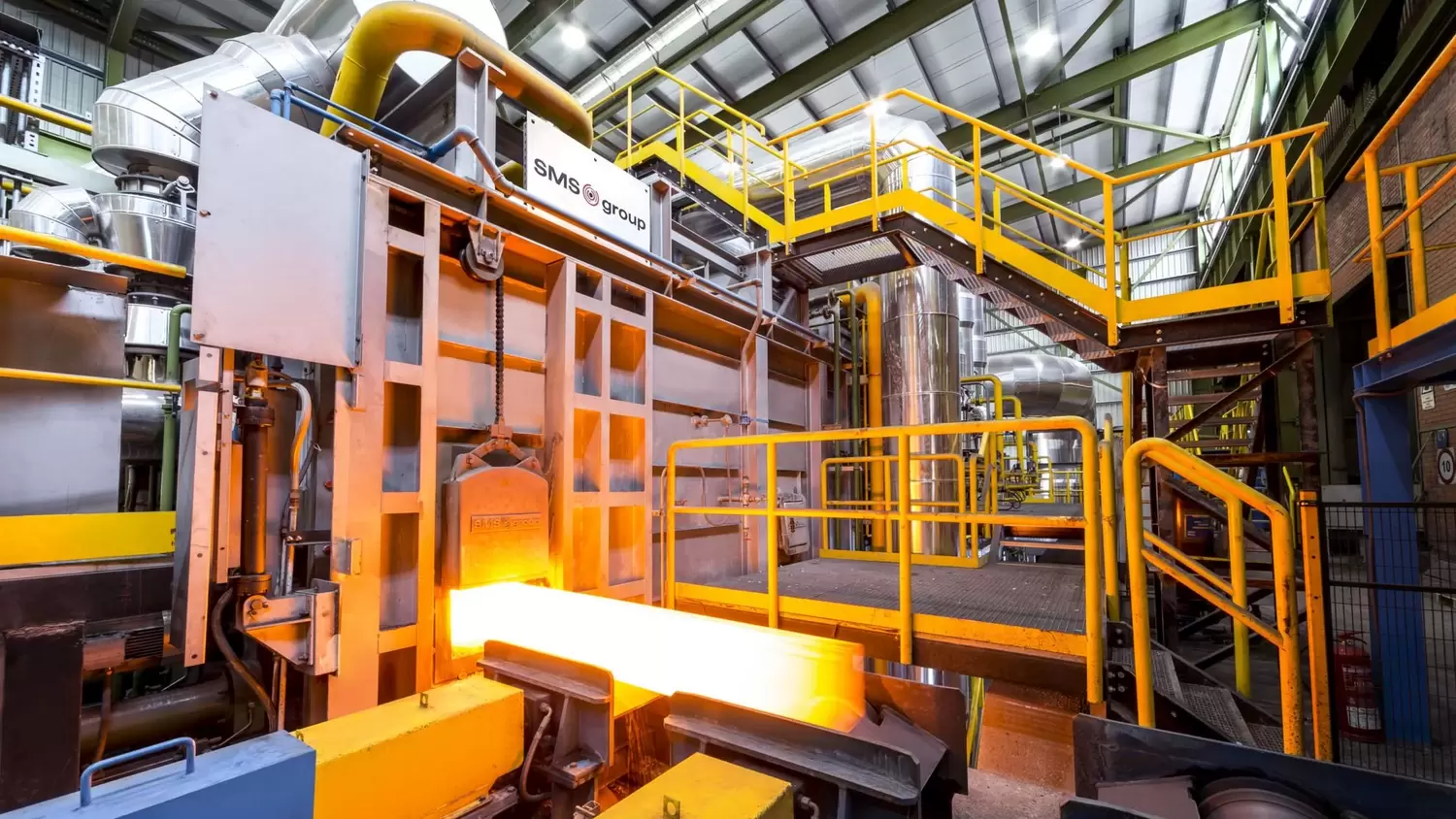

  • Walking beam furnace

    High productivity combined with operational flexibility

    Main data

    SMS group walking beam furnaces, both top and bottom-fired, allow for high production rates and top quality steel grades. Billets, heavy blooms, slabs and beam blanks can be processed. Walking beam furnaces feature special skid beams with cast alloy parts which endure high temperatures and mechanical stresses. SMS group continuously works on the development and integration of new designs and materials. Thanks to the advanced combustion system, all SMS walking beam furnaces are highly flexible in operation.

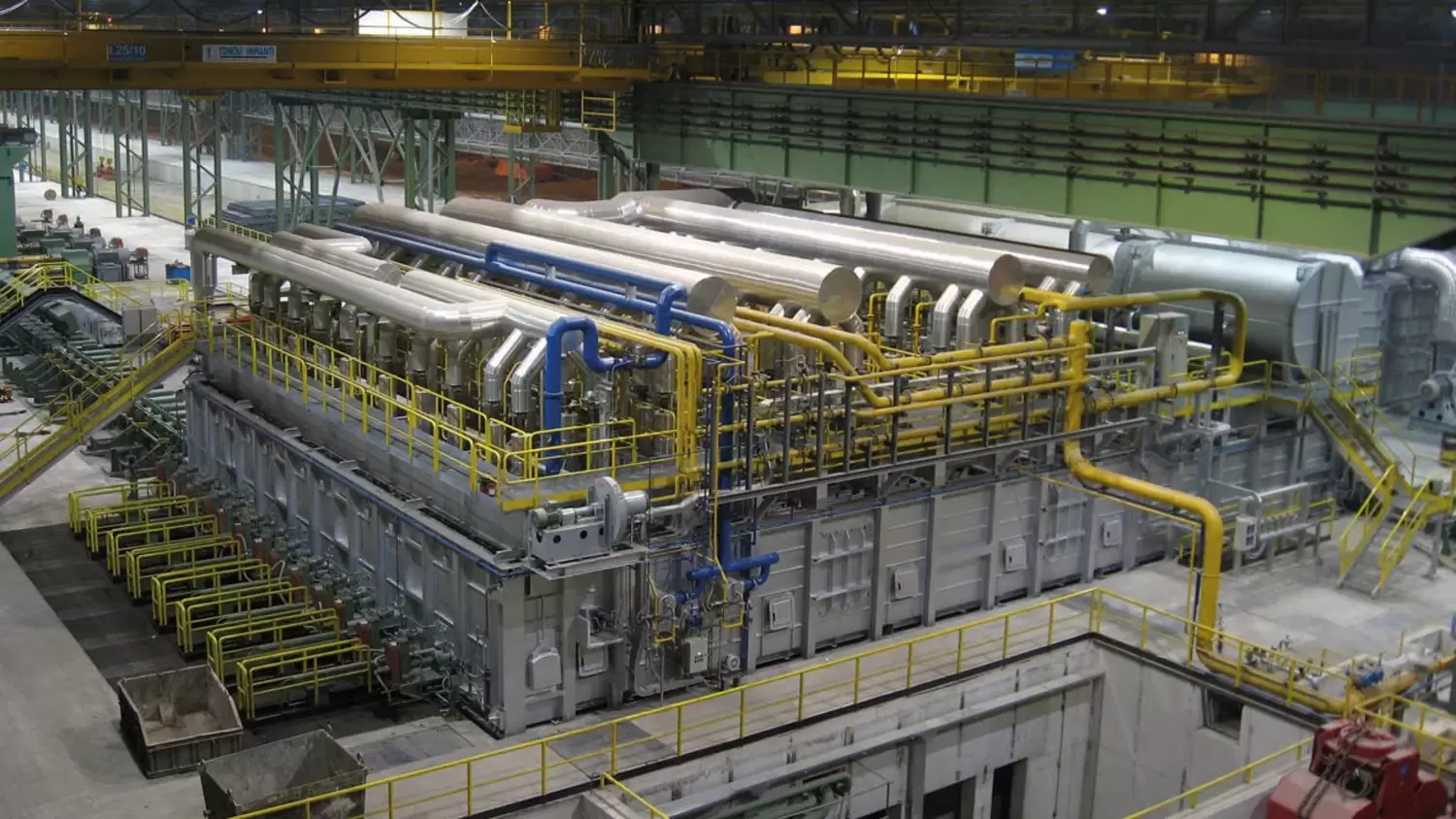

  • Walking hearth furnace

    High production rates at minimum specific consumption figures

    Main data

    Walking hearth furnaces are the optimum choice for many long products mills with production rates of up to 150 tons per hour. A major advantage of this furnace type is that it allows for very low specific consumption figures, achieved thanks to the absence of water-cooled elements inside the furnace.

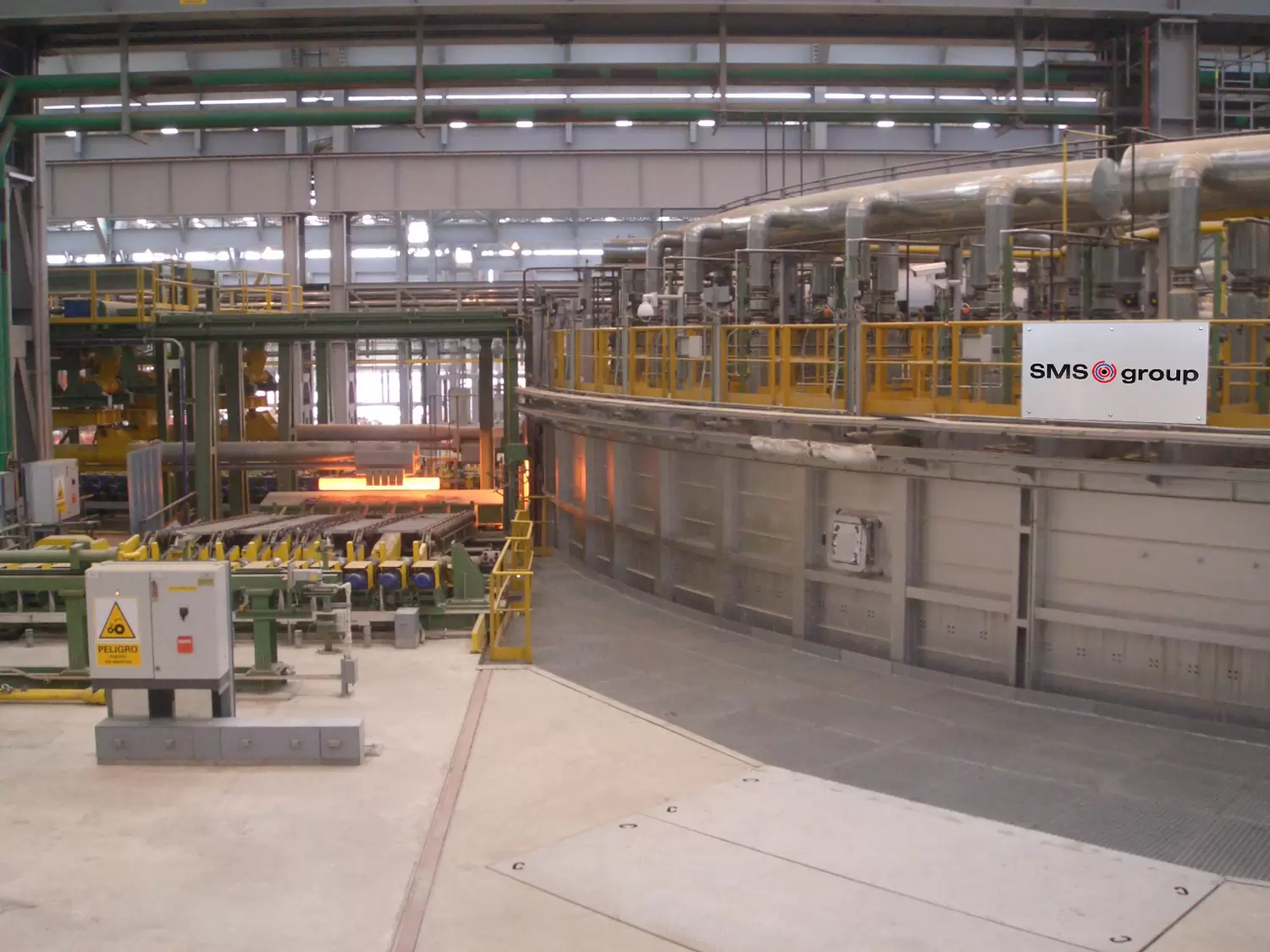

  • Rotary hearth furnace

    Reheating and heat treatment for seamless tube production

    Main data

    We believe in holistic solutions as the key to quality leadership. That’s why we combine our seamless tube mill with high-end furnaces. Both, rotary hearth furnaces and shell reheating furnaces, are fully integrated into the rolling process. They combine high capacities with special materials and components for maximum temperature endurance to withstand the high temperatures typical of this process – in order to reduce your maintenance costs.

    High-tech combustion systems guarantee temperature uniformity and minimum energy consumption.

Let's get in touch!

Use our contact form for questions, inquiries or personal contact.

Technology

  • When it comes to new plants or modernizations, SMS group offers the right burner technology

    At SMS group, we provide our customers with holistic advice and propose the ideal combustion technology configuration that takes into account the full plant setup and available fuel. The wide range of SMS burners enables the use of multiple fuels, including hydrogen, and this flexibility means SMS customers can reduce their fossil fuel consumption as well as the carbon footprint of their entire rolling mill.

    All burners guarantee state-of-the-art combustion control technologies, high performance, and low operating costs, and are suitable for retrofitting.

    SMS group supports its customers with tailor-made solutions that not only cover all parts of the combustion system, but also include level 1 automation control systems as standard and level 2 combustion optimization systems on request.

  • SMS ECOFlame+

    Versatile burner for low NOx emissions

    The SMS ECOFlame+ is a versatile burner for low NOx emissions and can be operated with a wide range of fuels. Furthermore, the burner can be operated either with modulating control or with X-Pact® DigiMod Control.

    SMS ECOFlame+

    Benefits

    • Low maintenance
    • Low NOx emissions ≤75 ppm (ref. with NG COA temp. of 550°C)
    • Power sizes from 500 kW to 5,000 kW
    • Working modes:
    • FLAME MODE
    • Flame length: 3.5÷9 mt
    • Turn down 1:8
    • High fuel flexibility
    • Fully compatible with X-Pact® DigiMod Control
  • SMS ZEROFlame: Flameless high efficiency burners

    Versatile burner for extremely low NOx emissions

    SMS ZEROFlame offers optimal combustion control and high flexibility in the choice of flame, flameless, and overboost mode. Extra low NOx emissions are achieved with flameless mode in particular. The SMS ZEROFlame is the standard version of our SMS ZEROFlame product family and is specifically designed for natural gas.

    SMS ZEROFlame

    Benefits

    • Fuels: Natural Gas
    • Extra low NOx emissions ≤40 ppm
    • Power sizes from 500 kW to 3,000 kW
    • 3 working modes:
    • Flame mode
    • Flameless mode
    • Overboost mode (+25÷50% of power)
    • Flame length: 3.5÷8 mt
    • Primary and secondary air controlled
    • Turn down 1:3 (flameless) or 1:8 (flame)
    • Highest thermal uniformity
    • Excellent with X-Pact® DigiMod Control
  • SMS RADFlame

    Flat flame roof burner

    The SMS RADFlame is a flat flame roof burner designed to fulfill the specific installation needs of SMS customers. The burner has a single fuel inlet and specially designed air and gas diffusers to create the right turbulence and reduce NOx emissions. It is operated with modulating control.

    SMS RADFlame

    Benefits

    • Low maintenance
    • Power sizes from 250 kW to 850 kW
    • Turn down 1:3
  • X-Pact® Prometheus

    Combustion optimization system for tailored steel quality and reduced fuel consumption

    With X-Pact® Prometheus , plant operators are able to boost their furnace’s overall performance. The advanced combustion optimization system improves those parameters that can make the difference in special steel quality production. X-Pact® Prometheus allows for targeted improvements of the metallurgical properties, for example increased temperature uniformity or minimized negative effects such as steel decarburization or high scale formation.

    Benefits

    • Fuel only as much as needed
    • Energy savings even during non-productive time
    • Efficiency index
    • Advanced features: roughing mill pyrometer feedback, skid marks effect prediction, pacing model
    • Full report system integrated with Level 2 automation
    • Metallurgical client available to customer experts for simulating and creating heating recipes off-line
    • Heating setpoints automatically adjusted by the charging conditions (cold, warm, hot charging)
  • SMS ZEROMark system

    Minimization of skid marks

    The SMS ZEROMark system is based a continuously changing of contact point between the beams and the stock, by means of an advance design of walking beam system.

    Benefits

    • Elimination of rolling troubles caused by cold spots, better stability of rolling force
    • Better temperature homogeneity resulting in no need to overheat and better overall efficiency
    • Better gauge tolerance in strip thickness
    • Avoidance of differences of recrystallization during rolling in the finishing mill
